Pneumatic fenders sling

Pneumatic fenders sling

FenderTec produces a wide range of Pneumatic fenders sling. We keep our standard size in stock for fast delivery. Need a different size? Non-standard dimensions can also be produced quickly upon request.

  • Wide range of rubber fenders & bumpers
  • Cut & pre-drilled fenders with fast lead times
  • Special bespoke fenders and bumper designs
  • Short production times
View full details

Pneumatic fenders sling Brochure

In our download section you will find the latest editions of our fender brochures.

DOWNLOAD BROCHURE

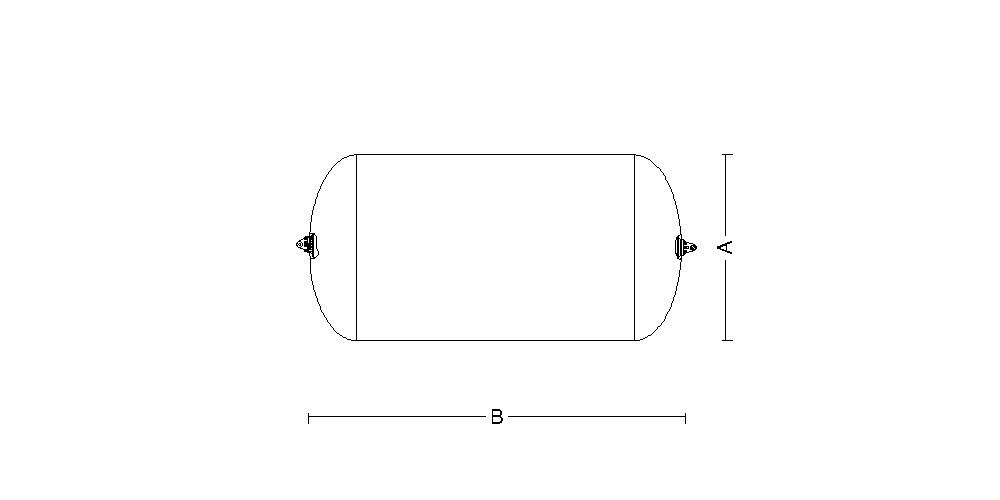

Product Name SKU Diameter (mm) Length B (mm) Initial Internal Pressure (kPa) Energy Absorption at 60% Compression (kN/m) Reaction Force at 60% Compression (kN/m)
Pneumatic Fender 500x1000mm - 50 Kpa - sling type 7005001000-S50 500 1000 50 6 64
Pneumatic Fender 1000x1500mm - 50 Kpa - sling type 7010001500-S50 1000 1500 50 32 182
Pneumatic Fender 1000x2000mm - 50 Kpa - sling type 7010002000-S50 1000 2000 50 45 257
Pneumatic Fender 1200x2000mm - 50 Kpa - sling type 7012002000-S50 1200 2000 50 63 297
Pneumatic Fender 1500x3000mm - 50 Kpa - sling type 7015003000-S50 1500 3000 50 153 579
Pneumatic Fender 2000x3500mm - 50 Kpa - sling type 7020003500-S50 2000 3500 50 308 875
Pneumatic Fender 2500x4000mm - 50 Kpa - sling type 7025004000-S50 2500 4000 50 663 1381
Pneumatic Fender 2500x5500mm - 50 Kpa - sling type 7025005500-S50 2500 5500 50 943 2019
Pneumatic Fender 3300x6500mm - 50 Kpa - sling type 7033006500-S50 3300 6500 50 1814 3015

Product questions

If you have any questions or uncertainties about the product, please don’t hesitate to reach out to our team of experts.

CONTACT US

Pneumatic fenders sling information:

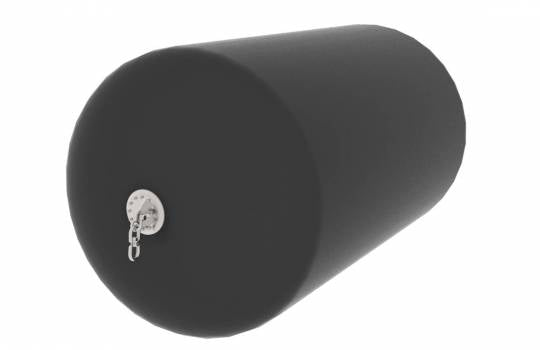

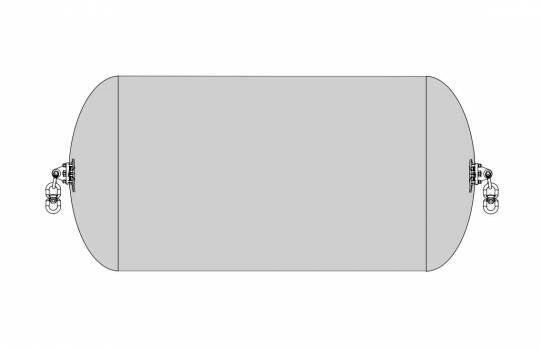

The Pneumatic fender sling is basically the same fender, but without the “netting”. The sling type Pneumatic fenders have a special outer rubber double-layered cover, which consists of a single cover and an extra tyre cord layer, resulting in better resistance to operational damages. At each end of the sling type fender, a flange with shackle and swivel is mounted to which a chain or cable can be attached.

All Pneumatic sling type fenders come – and are on stock – with an internal pressure of 0.5 Bar. All dimensions can be produced and supplied with 0.8 internal pressure.
